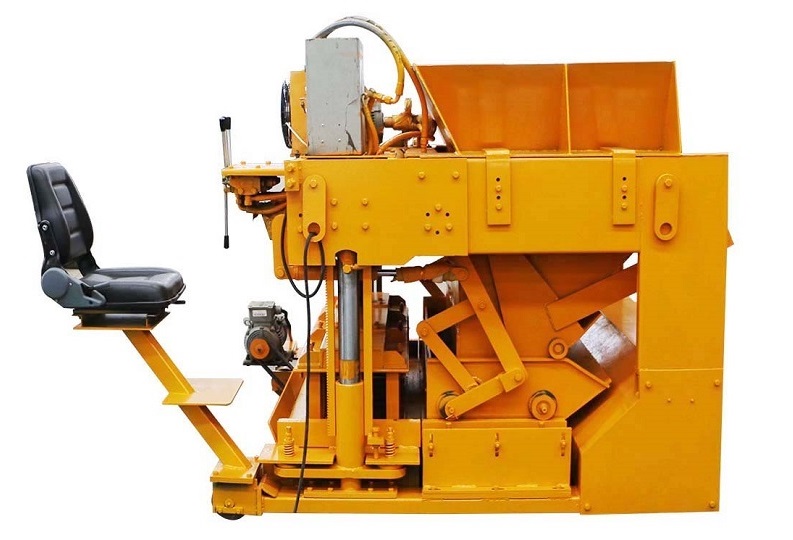

6-30 mobile semi-automatic fly ash concrete brick laying machine for sale
6-30 is a mobile brick machine, so 6-30 doesn’t need pallets when producing blocks, then you can save cost largely. This machine also has the following features.
Function
6-30 brick making machine can produce various cement and concrete blocks by changing moulds.
High production efficiency
6-30 is an automatic block machine and the shaping cycle is 20~24s, so the production efficiency is very high.
High-quality mould
Our moulds are made of 16# manganese steel. Besides the good raw material, precise line cutting technology and 900 °C carburizing heat treatment technology are all adopted in the process of brick moulds production. So the brick moulds have better performance and longer service time.
Technical parameter
| 1 | Dimension of host machine | 1800x1800x1500mm | 4 | Total machine power | 9kw |
| 2 | Moulding period | 20~30s | 5 | Frequency | 3500r/min |
| 3 | Voltage | Adjustable | 6 | Mixer model | JS500/JZC350 |
Theoretical production capacity
| No. | Size(LxWxH) | Pcs/Mould | Pcs/Hour | Pcs/Shift |
| 1 | 400x200x200mm | 6 | 720-1080 | 5760~8640 |
| 2 | 400x150x200mm | 7 | 840-1260 | 6720~10080 |
| 3 | 400x120x200mm | 9 | 1080-1620 | 8640~12960 |
Note：
1.The raw material proportion for your reference:
a. Concrete: 10% cement, 30% sand, 60% small stones
b. 10% cement, 90% stone powder
c. 10% cement, 30% fly ash, 60% stone powder
