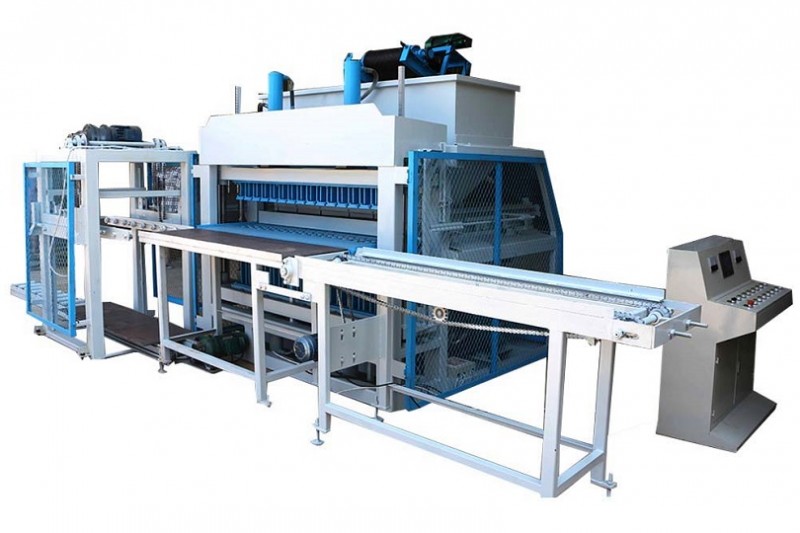

10-10 hydraulic interlocking fully automatic brick making mahine
10-10 is a fully automatic brick making machine line, It is composed of crusher, soil screen machine, pan mixer, conveyor belt, brick making machine, brick conveyor machine, pallet feeder, stacker, You can choose suitable supporting facilities according to your requirements.
| 10-10 full automatic interlocking brick making machine line | |||||
| No. | Device Name | Specification | No. | Device Name | Specification |
| 1 | Brick machine(Inc:PLC control system) | 10-10 | 7 | Conveyor belt 1 | 4 meters |
| 2 | Pallet feeder | 8 | Conveyor belt 2 | 4 meters | |
| 3 | Stacker | 9 | Conveyor belt 3 | 5 meters | |
| 4 | Pan mixer | JQ750 | 10 | Brick conveyor machine | |
| 5 | Soil crusher | 4-01 | 11 | One standard mould | 254*127*76mm |
| 6 | Soil screen machine | 2-2 | 12 | Spare parts and tools | |
Function
This machine can produce many different shapes interlocking brick by changing moulds.
High-quality machine body:
Best steel Q345D and special welding techniques (CO2 gas protective welding ) make the machine strong and of high resistance to vibration.
High productivity.
Making 10 bricks at one time, and shaping cycle only 8~10 seconds, so the daily capacity as high as 28800 pieces.
Advanced technology
Hydraulic pressure technology is adopted by this machine, the pressure can be as high as 60Mpa, so the blocks produced are of good quality, large density and high strength.
High-quality mould
All mould use precise wire cutting and carburizing heat treatment to prolong its service life.
■ After sales:
We keep the superior quality machine for you, 1-year guarantee for the whole machine.
■ Spare parts
We provide a set of spare parts with the machine
Technical parameter
| 1 | Dimension of host machine | 2400×2100×2200mm | 3 | Voltage | Adjustable |
| 2 | Shaping cycle | 10S | 4 | Hydraulic system pressure | 60MPa |
Theoretical production capacity
| No. | Size (L*W*Hmm) | Pcs/Mould | Pcs/Hour | Pcs/Shift(8h) | ||
| 1 | 300*150*100mm | 10 | 3600 | 28800 | ||
Note:
1. All 10-10 block machines need to load into a 20GP container.
2. 10-10 machine mold changeable
3. Total need 4 workers. 1 for crusher, 1 for screen and mixer, 2 for block delivery
4. The raw material proportion for your reference:
a. Clay: 100% clay
b. 10% cement, 90% stone powder
c. 10% cement, 30% fly ash, 60% stone powder
d. 10%-25% cement, 75%-90% clay
