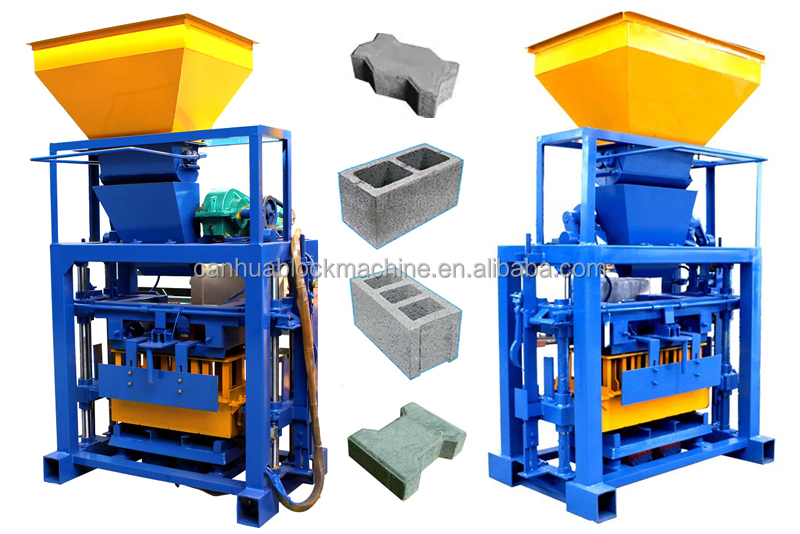

QT40-1 china small cheap semi automatic concrete hollow block brick making machine

QT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haiti

1.Introductions of QT40-1 Burning Free Brick Making Machine:

QT40-1 brick machine is a low cost cement brick making machine, it is also a concrete block moulding machine.

With strong structure and simple operation, it is your best choice to start your hollow block/solid block/road paver block factory.

1).This hollow brick block making machine needs electricity as power source. A stable power supply is required. Otherwise you need diesel generator.

2).QT40-1 is a successful machine model, widely used in China and overseas, like USA,AFRICA,EAST ASIA,ETC.

3).The raw material includes crushed stone,sand,cement,water.All these are blended in mixer with a certain ratio.

The ratio is 50%/40%/9%/1%,then you get the qualified concrete,which are molded into brick/block by QT40-1 brick machinery.

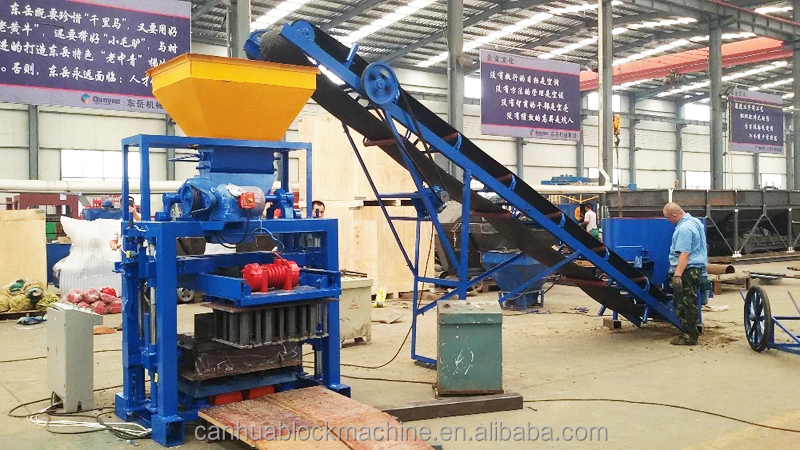

4).To increase the production capacity, you need buy the belt conveyor,mixer.These three machines to set up a simple concrete hollow brick block production line.

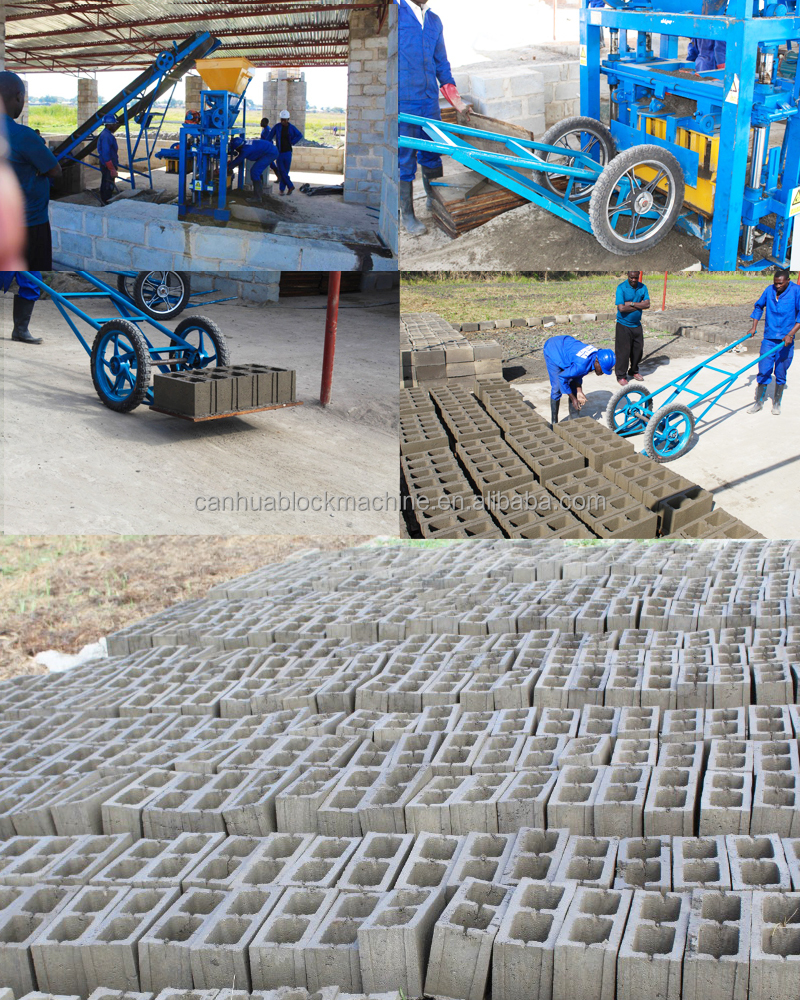

Check below picture, see how it works.

THIS IS BURNING FREE CEMENT BRICK MACHINE,MEANS NO NEED BURNING AFTER BRICK IS MOLDED.

QT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haiti

1.Main Technical parameter

Dimension of host machine

1350x1460x1800MM

Total machine power

8.8KW

Mould period

40S

Vibration force

30KN

Pallet size

850x450x25MM

Mixer Model

JQ350

Workshop area

60m2

Weight

1.1T

QT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haiti

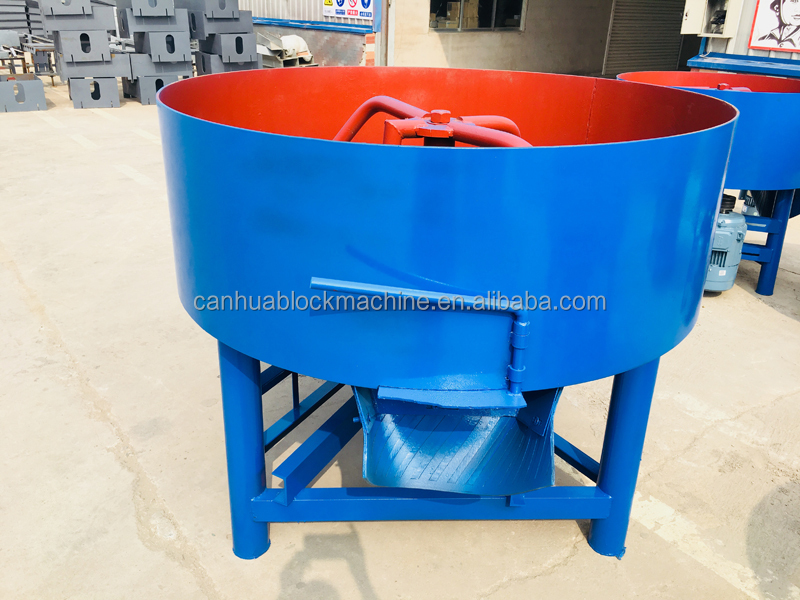

2. Concrete Mixer

Model No.

JD350

Feeding volume

560L

Discharging volume

350L

Productivity

≥4cubic meter per hour

Blending blade

3 pcs

Working method

Drived by electric motor

Power

7.5kw

Overall dimension

1.25×1.25×1.3M

Total weight

400KG

QT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haiti

3.Concrete Block Samples Productivity

This small block machine can make hollow blocks with groves at both sides. Also can make pavers, normal gardening pavers are also available.

Size (LxWxH)


Pcs/mould

Pcs/Hour

Pcs/Shift

400x100x200MM

QT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haiti

7

280-380

4000-5040

400x150x200MM

5

360-450

2880-3600

400x200x200MM

QT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haiti

4

280-380

2240-2800

400x250x200MM

3

220-270

1760-2160

Holland paver

QT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haiti

14

1600

12800

"S" Paver

QT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haiti

8

720

5760

"I" Paver QT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haiti 8 720 5760

QT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haiti

QT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haiti

QT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haitiQT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haitiQT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haiti

QT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haiti

(1) Packing: Our packaging is safety export package (wood box) for LCL, Nude package for full container or according to Customer's request.

(2) Shipping: Finished produce the machine in 20-25 days after we receive your deposit, delivery the machine in 10 days after receive your balance payment.

(3) Payment: We accept T/T, L/C, Money Gram, West Union, etc. payment method, all can negotiate.

(4) Service: We supply full line top service from get your inquiry to install the brick maker machine. We supply you free installation machine, free training your workers and one set free spare parts. Our engineer can go to your site design the factory for you.

If you need some other supporting facilities, please tell us what do you want and we will offer you a nice quotation.

QT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haiti

QT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haiti

QT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haiti

QT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haiti

QT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haitiQT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haiti

Conctact us for more information

If you are interested with our products, please don't hesitate to contact us. You can tell me the following questions, Then I can send you accurate quotation soon, including additional discount!

1. Which machine do you need? like brick making machine,mixer,batching plant,or the whole line, etc.

2. what is your raw material plan to process? like clay,sand,cement,concrete,slag, etc.

3. The capacity you need. Like 1000 pieces per hour or 2000 pieces per day.

4. Your contact information. Both Email and phone number are essential, we can contact you easier.

QT40-1 china small cheap semi automatic co<em></em>ncrete hollow block brick making machine in haiti
